Industrial-Grade SSiC Square Beams with 1650°C Max Service Temp, 380MPa Flexural Strength, and Superior Anti-Creep Performance

  • 1
  • 2
  • 3

MOQ : Negotiable

Delivery Time : Negotiable

Price : Negotiable

Model Number : Customizable

Brand Name : KEGU

Place of Origin : China

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : Strong wooden box for Global shipping

Usage : Industry Usage

Chemical Composition : Al2O3, SiO2

Sic Content : 85%

Maximum Temperature : 1600℃

Characteristics : High wear resistance

Thermal Expansion Coefficient : 4.0-4.5 × 10^-6 /K

Material Composition : 4%Si >96%Sic

Working Temperature : 1650

Advantage : Wear and abrasion resistance

Purity : 98%

Material : SiC

Acid Alkaline Proof : excellent

Solubility : Insoluble

Open Porosity : <0.1%

Flexural Strength : 380MPa

Composition:SiC : >98%

Color : Black

Density : >3.05g/cm3

Max. Service Temp. : 1650℃

Contact Now

Industrial-Grade Pressureless Sintered SiC Square Beams
High-load, anti-creep structural components engineered for extreme industrial environments. Manufactured via extrusion and sintered at ultra-high temperatures (2100-2200°C), these beams deliver unmatched mechanical strength, minimal thermal expansion, and superior resistance to creep under continuous high-temperature load.
Key Features & Engineering Advantages
  • Exceptional High-Temperature Load Bearing: Maintains structural integrity and high flexural strength (300-400 MPa) at temperatures up to 1650°C
  • Ultra-Low Thermal Expansion: Coefficient of 4.0 x 10⁻⁶/K ensures dimensional stability, preventing warping and misalignment in thermal cycles
  • Superior Anti-Creep Performance: Withstands long-term static loads at high temperatures without deformation, ensuring kiln structural stability
  • Excellent Thermal Shock Resistance: Withstands thermal shocks over 350°C, facilitated by high thermal conductivity (196 W/m*K at 20°C)
  • High Corrosion & Oxidation Resistance: Resists strong acids, alkalis, and forms a protective SiO₂ layer at high temperatures
Technical Specifications: Pressureless Sintered SiC (SSiC)
Property Unit Value
Composition: SiC Vol% ≥98
Density @ 20 °C g/cm³ ≥3.05
Flexural Strength @ 1300 °C MPa 300-400
Coefficient of Thermal Expansion 10⁻⁶/K 4.0
Thermal Conductivity @ 20 °C W/(m*K) 196
Max. Service Temp (in air) °C 1650
Open Porosity Vol% ≈0

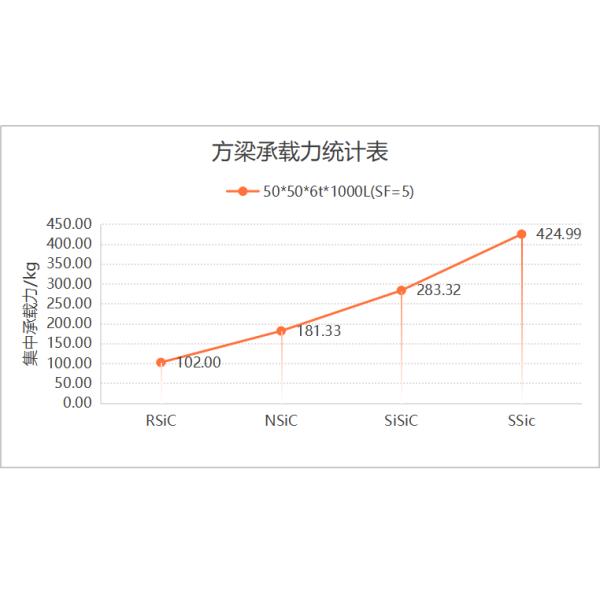

Load-Bearing Capacity Variations
Industrial-Grade SSiC Square Beams with 1650°C Max Service Temp, 380MPa Flexural Strength, and Superior Anti-Creep Performance
Primary Industrial Applications
SSiC square beams are critical load-bearing support structures in high-temperature kilns (e.g., tunnel kilns, shuttle kilns) for processing:
  • Lithium-Ion & Sodium Battery Cathode Materials
  • Electronic & Advanced Technical Ceramics
  • Magnetic Materials & Powder Metallurgy Products
  • High-Temperature Refractory Materials
Customization & Precision Manufacturing Services
We provide complete customization to meet your specific kiln design requirements:
  1. Precision Machining: Drilling, slotting, and end-finishing per your technical drawings to ensure perfect installation and alignment
  2. Profile Customization: Available in standard and custom profiles, including:
    • U-shaped Beams
    • L-shaped Beams
    • Custom internal bore configurations
Industrial-Grade SSiC Square Beams with 1650°C Max Service Temp, 380MPa Flexural Strength, and Superior Anti-Creep Performance

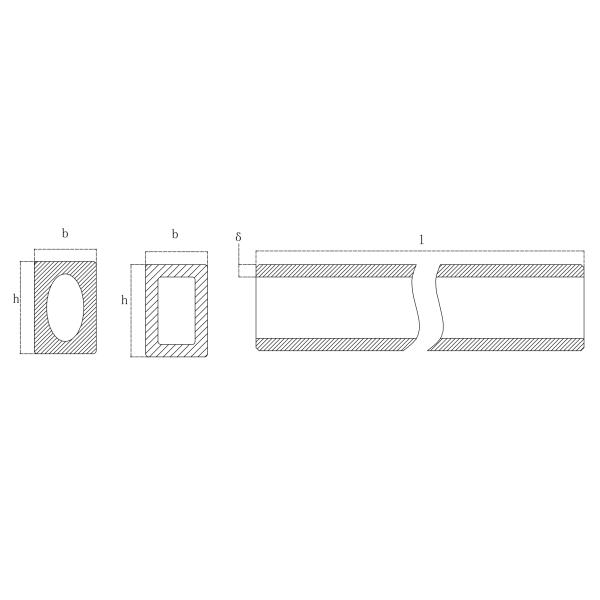

Standard Product Matrix
Classification h (mm) b (mm) δ (mm) Max Length (±2mm)
Standard Square-Hole 30-55 20-50 5-6 3000~4000 mm
Standard Round-Hole 50-55 40-50 5-6 Custom
Large-Size Square-Hole 70-80 50-60 8-12 Custom
Large-Size Round-Hole 70-80 50-60 5-8 Custom
All specifications can be customized per client requirements. Standard tolerance: ±0.5mm to ±0.8mm.
