NIJ Certified Silicon Carbide Body Armor with Multi-Hit Capability and Lightweight Defense for Ballistic Protection

Price : Negotiable

Delivery Time : Negotiable

Usage : Industry Usage

Chemical Composition : Al2O3, SiO2

Sic Content : 85%

Maximum Temperature : 1600℃

Characteristics : High wear resistance

Thermal Expansion Coefficient : 4.0-4.5 × 10^-6 /K

Material Composition : 4%Si >96%Sic

Working Temperature : 1650

Advantage : Wear and abrasion resistance

Purity : 98%

Material : SiC

Acid Alkaline Proof : excellent

Solubility : Insoluble

Open Porosity : <0.1%

Flexural Strength : 380MPa

MOQ : Negotiable

Model Number : Customizable

Composition:SiC : >98%

Color : Black

Density : >3.05g/cm3

Max. Service Temp : 1650°C

Brand Name : KEGU

Place of Origin : China

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : Strong wooden box for Global shipping

Contact Now

Silicon Carbide Ceramic Armor: Superior Ballistic Protection

Our advanced silicon carbide (SiC) ceramic armor represents the pinnacle of ballistic materials technology, combining exceptional hardness (9.5 Mohs) with significantly reduced weight to deliver unmatched protection for personnel and vehicles against high-velocity and armor-piercing threats.

Key Ballistic Advantages
  • Multi-Hit Capability: Maintains structural integrity under successive impacts, ensuring reliability in dynamic engagements
  • Lightweight Defense: Up to 70% lighter than steel armor at equivalent protection levels, reducing wearer fatigue and increasing mobility
  • Full NIJ Standard Compliance: Independently certified performance across protection levels I through IV
  • Customizable Geometry: Available in square, hexagonal, cylindrical, and other configurations to fit any armor system design
  • Advanced Manufacturing: Utilizing both Pressureless Sintering (SSiC) and Reaction-Bonding (RSiC) to optimize performance and cost-efficiency
Technical Performance Specifications
Protection Level Test Rounds Velocity Range Certification Standard
I - III-A .22 LR - .44 Magnum 322 - 436 m/s NIJ 0101.04
III - IV 7.62mm NATO - .30 Cal AP 847 - 878 m/s NIJ 0101.04

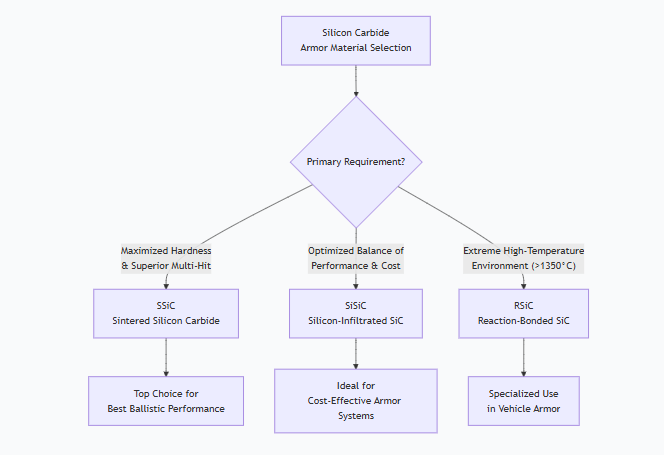

Material Selection Guide

The optimal type of silicon carbide depends on your specific requirements for ballistic performance, temperature resistance, and budget.

NIJ Certified Silicon Carbide Body Armor with Multi-Hit Capability and Lightweight Defense for Ballistic Protection
NIJ 0101.04 Ballistic Test Summary
Class Test Bullet Bullet Weight Velocity (m/s) Distance (m) Max BFD (mm)
I .22 Caliber LR LRN 2.6 g (40 gr) 329 ± 9 5 44
I .380 ACP FMJ RN 6.2 g (95 gr) 322 ± 9 5 44
II-A 9mm FMJ RN 8.0 g (124 gr) 341 ± 9 5 44
II-A .40S&W FMJ RN 11.7 g (180 gr) 322 ± 9 5 44
II 9mm FMJ RN 8.0 g (124 gr) 367 ± 9 5 44
II .357 Mag JSP 10.2 g (158 gr) 436 ± 9 5 44
III-A 9mm FMJ RN 8.2 g (124 gr) 436 ± 9 5 44
III-A .44 Mag JHP 15.6 g (240 gr) 436 ± 9 5 44
III 7.62mm NATO FMJ 9.6 g (148 gr) 847 ± 9 15 44
IV .30 Caliber M2 AP 10.8 g (166 gr) 878 ± 9 15 44

BFD: Back Face Signature (Trauma Impression)

Primary Applications
  • Personal Protection Systems
    • Tactical Body Armor Plates
    • Special Operations Equipment
  • Vehicle Armor Solutions
    • Light Tactical Vehicles
    • Naval Craft Protection
    • Critical Asset Shielding
Engineering & Customization Support

Our ballistic experts provide comprehensive technical consultation to integrate our ceramics into your armor solution.

  • Threat Level Assessment
  • Armor System Integration
  • Custom Shape & Geometry Development
  • Performance Validation Testing

Product Tags:

Vehicle Armor Silicon Carbide Ceramics



Bulletproof Silicon Carbide Ceramics



Body Armor Plates SIC Ceramics
