Round Square Foundry Alumina Ceramic Foam Filter with 80-90% Porosity and High Temperature Resistance

Material : SiC

Composition:SiC : ＞85%

Color : Black

Density : ≥3.65g/cm3

Max. Service Temp : 1380℃

Flexural Strength : 250MPa

Hardness : ≥84HRA

Water Absorption : ≤0.2%

Abrasion : < 0.02%

Bending strength : ≥290MPa

Model Number : Customizable

Brand Name : KEGU

Place of Origin : China

Price : 200-500 yuan/kg

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 2,000 pcs/month

Packaging Details : Strong wooden box for Global shipping

Contact Now

Round Square Foundry Alumina Ceramic Foam Filter 80-90% Porosity
Aluminum oxide foundry foam ceramic filter for filtration of cast iron and non-ferrous alloys. To obtain good quality metal castings, the minimum content of foreign impurities in the metal is crucial.
Ceramic Filters Solve Two Main Problems:
  • Removal of solid particles from the melt
  • Elimination of flow turbulence, which due to oxidation of the metal can become a source of inclusions in the castings
Technical Specifications
Property Value
Working Temperature ≤1200°C
Porosity 80~90%
Compression Strength (Room Temperature) ≥1.0Mpa
Volume Density ≤0.5g/cm3
Thermal Shock Resistance 800°C to room temperature 5 times
Application Non-ferrous and alumina alloys, high temperature gas filter, chemical fillings and catalysis carrier
Chemical Composition
Component Percentage
Al2O3 80~82%
SiO2 5~6%
Others 12~15%
Pouring Rate and Filtration Capacity
Dimensions (mm) Dimensions (inch) Pouring Rate (kg/s) Filtration Capacity (ton)
178x178x50 7x7x2 0.2-0.6 5
228x228x50 9x9x2 0.3-1.0 10
305x305x50 12x12x2 0.8-2.5 15
381x381x50 15x15x2 2.2-4.5 25
430x430x50 17x17x2 3.0-5.5 35
508x508x50 20x20x2 4.0-6.5 45
585x585x50 23x23x2 5.0-8.6 60
Non-metallic inclusions in molded products reduce strength, ductility, resistance to creep and corrosion, fatigue strength and wear resistance. Large inclusions increase the risk of destruction and can influence the fluidity and casting properties of the melt.
Materials
  • Aluminum oxide (Al2O3)
  • Zirconia (ZrO2)
  • Silicon carbide (SiC)
  • Various ceramic compositions
Filter Comparison
Property Ceramic Foam Filters Extruded Filter
Filter Materials Alumina, SiC, Zirconia Cordierite-Mullite
Applications Aluminum, Iron, Steel alloys Grey iron, ductile iron, aluminum alloy
Volume Density (g/cm3) 0.4 - 1.0 0.8 - 1.2
Hole Density (ppi) 8 - 40 100 - 300
Open Porosity (%) 80 - 90 35 - 60
Maximum Working Temperature (°C) 1100 - 1700 > 1500
Compressive Strength (MPa) 0.8 - 1.5 > 2
Thermal Shock Resistance 3 - 6 cycles 5 cycles

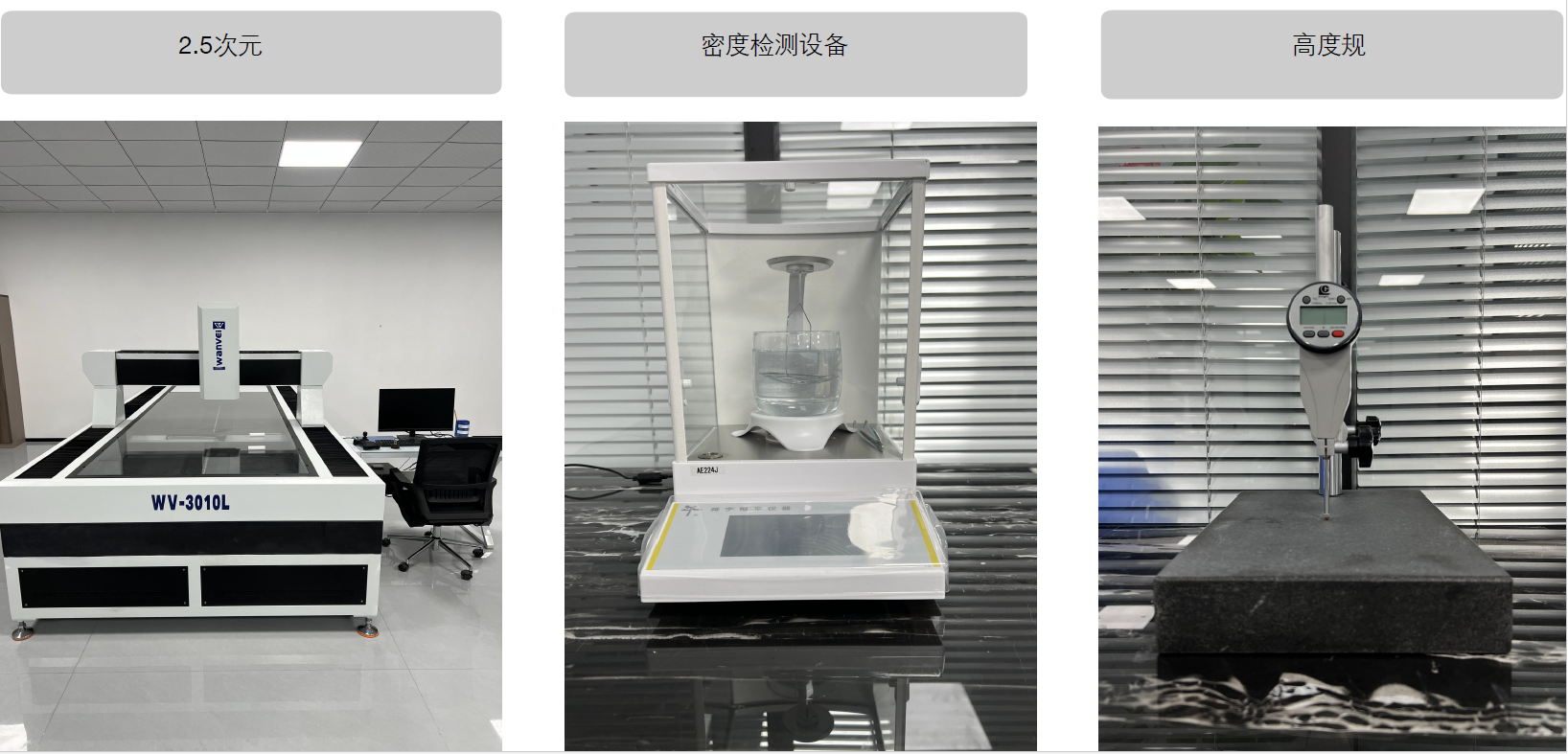

Quality Control
Round Square Foundry Alumina Ceramic Foam Filter with 80-90% Porosity and High Temperature Resistance
