Low-Sodium Alpha Aluminum Oxide (2-3μm) | White Alumina Ceramics for Vacuum Tubes & Extrusion
High-purity white alumina ceramics (Al₂O₃ ≥99.8%) with 2-3μm crystal size. Ideal for electric vacuum tube shells (dry pressing) and extruded ceramics. Excellent electrical insulation and sinterability.
Low-Sodium Alpha Aluminum Oxide for Advanced Technical Ceramics
Our high-purity white alpha aluminum oxide powders are engineered for demanding ceramic forming processes. With controlled crystal sizes (0.5-3.0μm) and ultra-low sodium content, they are the ideal choice for applications ranging from electric vacuum tubes to extruded wear-resistant parts.
Product Grades & Specifications
| Parameter |
Unit |
TM-CB Series |
TM-CC-1 Series |
TM-CC-2 Series |
| Chemical Composition |
| Al₂O₃ |
% |
≥ 99.8 |
≥ 99.4 |
≥ 99.7 |
| Na₂O |
% |
≤ 0.05 |
≤ 0.35 |
≤ 0.10 |
| SiO₂ |
% |
≤ 0.04 |
≤ 0.05 |
≤ 0.04 |
| Fe₂O₃ |
% |
≤ 0.03 |
≤ 0.03 |
≤ 0.03 |
| Physical Properties |
| Density |
g/cm³ |
≥ 3.95 |
≥ 3.92 |
≥ 3.94 |
| Original Crystal Size |
μm |
2.0 - 3.0 |
0.5 - 1.0 |
1.0 - 2.0 |
| Particle Size (D50) |
μm |
4.0 ± 0.5 |
2.0 ± 0.5 |
2.0 ± 0.5 |
Note: 'V' variant grades (e.g., TM-CB-V) offer slightly adjusted purity with similar physical properties.

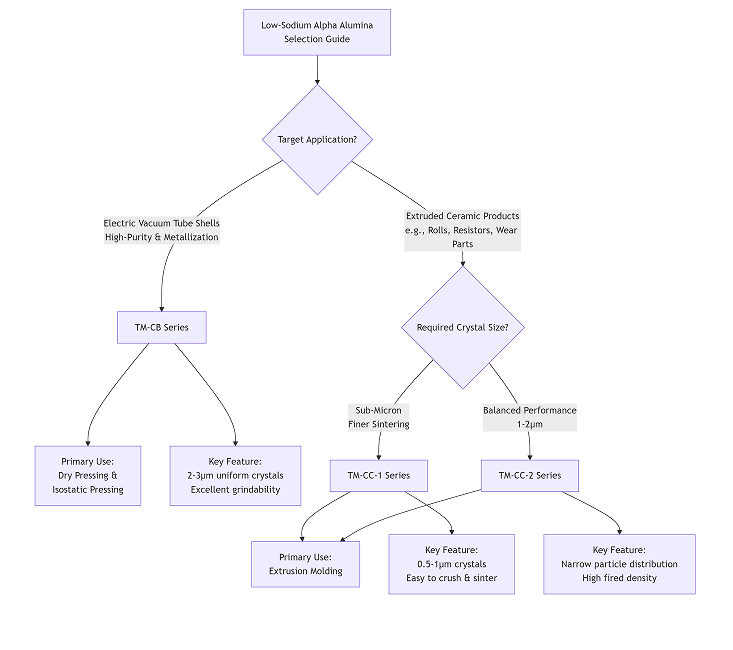

Application-Specific Product Guide
Key Features & Benefits by Series
TM-CB Series (e.g., TM-CB, TM-CB-V)
- Superior Electrical Insulation: Essential for high-performance electric vacuum applications.
- Excellent Grindability & Uniformity: 2-3μm original crystals ensure a uniform microstructure and superior surface finish after grinding.
- Ideal for Metallization: The composition and structure provide an excellent substrate for subsequent metal coating processes.
TM-CC Series (e.g., TM-CC-1, TM-CC-2)
- Enhanced Sinterability: Fine, reactive particles promote densification at optimized temperatures.
- High Fired Density: Results in ceramic bodies with high mechanical strength and durability.
- Uniform Shrinkage: Narrow particle size distribution ensures predictable and consistent dimensional control during firing.
